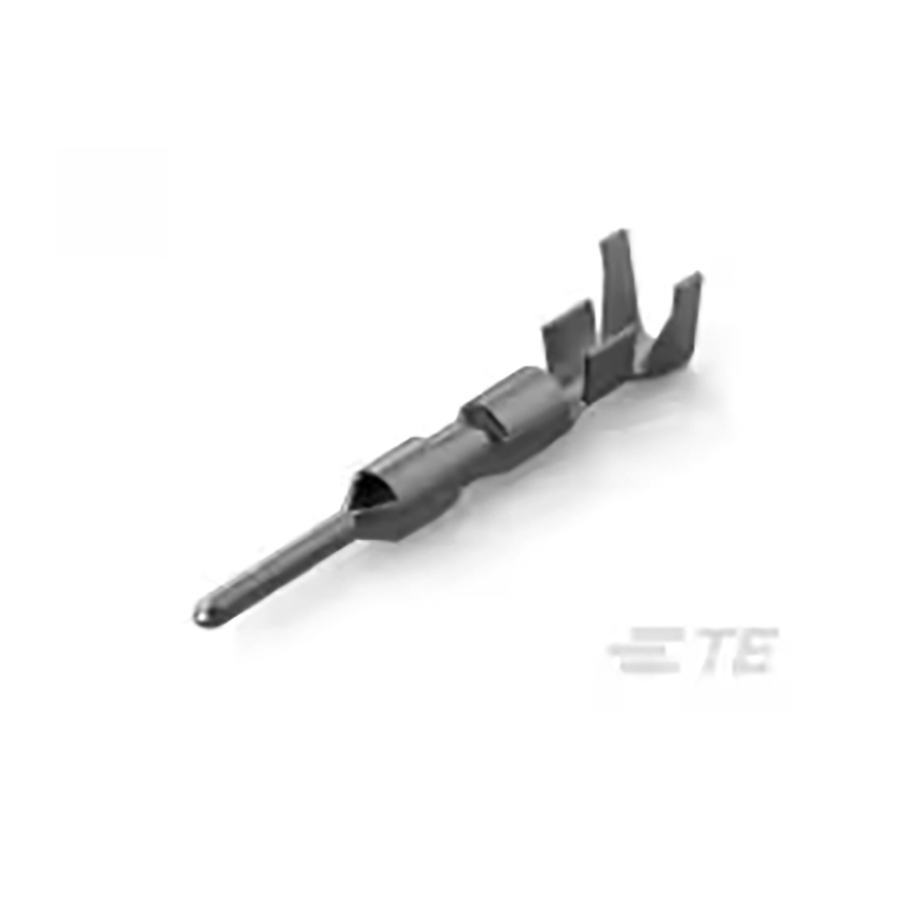

794220-1
Manufacturer:
TE Connectivity
Mfr.Part #:
794220-1
Datasheet:
Description:
IC and Component Sockets Cable Pin
| Parameter | Value |
|---|---|
| Length | 19.69 mm |
| Termination | Crimp |
| Max Operating Temperature | 185 °C |
| Min Operating Temperature | -4 °C |
| Height | 4.42 mm |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Depth | 3.81 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | |
| Current Rating | 9.5 A |
| Max Current Rating | 10.5 A |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Pin (Male) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Pin |
| Wire/Cable Gauge | 22 AWG to 18 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Style | Pin |
| Contact Current Rating | 10.5 A |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 18 AWG |
| Insulation Diameter | 2.3876 mm |
| Contact Gender | Male |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | Without |
| Contact Finish - Mating | |
| Termination Style | Crimp |
Stock: 11124
Distributors
pcbx
pcbxUnit Price$0.32502
Ext.Price$0.32502
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32502 | $0.32502 |
| 10 | $0.16251 | $1.62510 |
| 50 | $0.12501 | $6.25050 |
| 100 | $0.09616 | $9.61600 |
| 500 | $0.07397 | $36.98500 |
| 1000 | $0.05690 | $56.90000 |
| 3000 | $0.04377 | $131.31000 |
| 5000 | $0.04123 | $206.15000 |
| 10000 | $0.03883 | $388.30000 |
| 30000 | $0.03657 | $1097.10000 |
| 50000 | $0.03445 | $1722.50000 |
